WLP-205

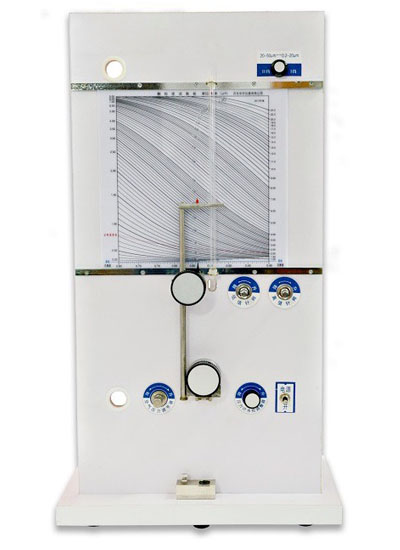

Fisher Subsieve sizer (Model: WLP-205) can rapidly measure the
average particle size for different kinds of dry powder, like
stone powder, metal powder, chemical powder, etc. It works with
gas permeability principle. The measuring result is indicated
directly on a self-calculating multi-curve chart at the front of
it. Its measurement is fast and it need not any dispersion. The
measuring result is unaffected by particle shape. It is suitable
for all powder processing industries where the determination of
powder size is required.
The porosity range of this instrument has been expanded from
original 0.40~0.80 to current 0.24~0.40, 0.40~0.80, 0.80~0.95,
so that it can better meet the demands of power processing
industries. It has such features: stable performance, easy
operation, good repetition.
This instrument is also called Blaine Fineness Tester or Average
Particle Size Analyzer. Based on model WLP-205, we have
developed model WLP-208 and model WLP-216. If you have any
questions about our FSSS instruments, please feel free to
contact us.
Main Technical Data of WLP-205
1, measuring range: 0.20-50 micron or 0.20-100 micron
2, porosity range: 0.25-0.40, 0.40-0.80, 0.80-0.95
3, repeatability: ± 3%
4, ambient temperature: 25 ± 10 °C
5, precision: ± 3%
6, Power: 30W
7, power supply: 220V ± 22V
8, weight: 18kg
9, size: 735 x 414 x 244 mm³
